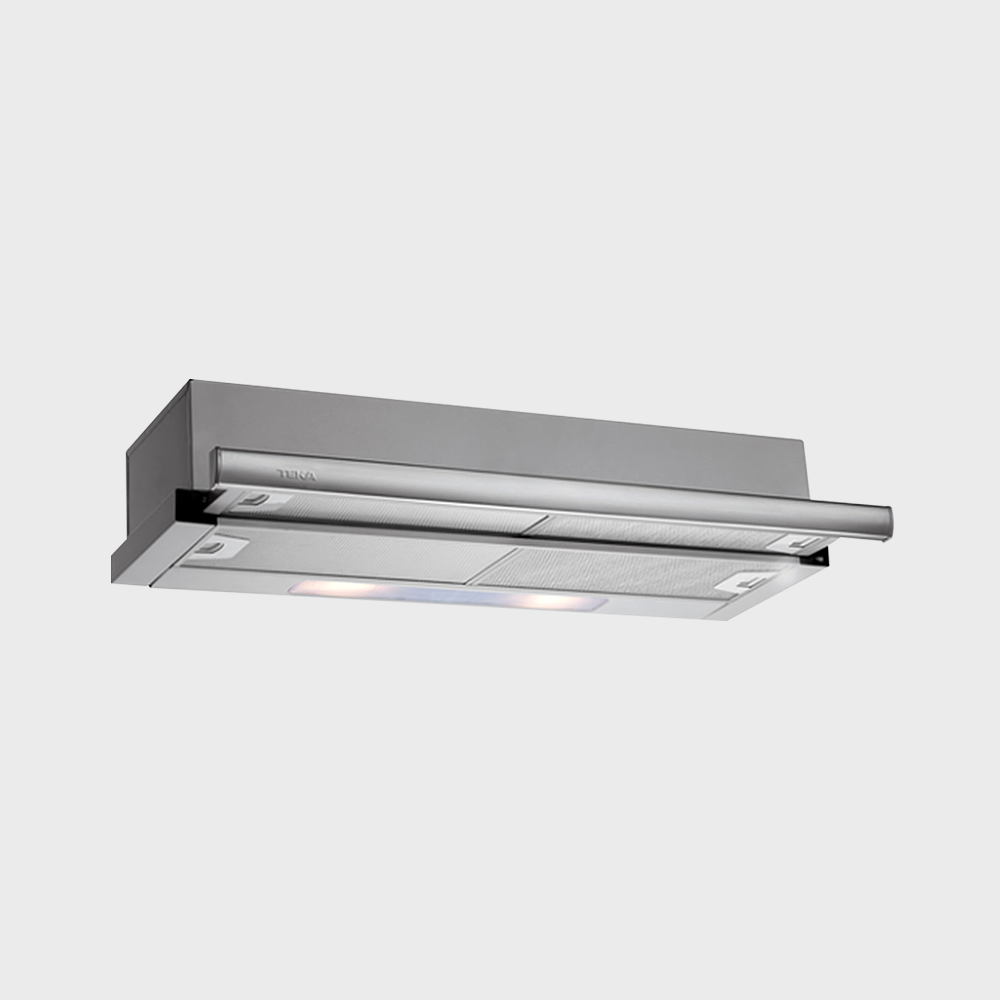

TL 9310

• Telescopic pull-out hood

• Mechanical control panel

• 2 speeds

• Exhaust capacities: (m³/h):  Max exhaust 756 Free outlet 366 Max 332 Min 233

• 2 Integrated LED lamps

• 4 aluminium filters

• Automatic lighting

• Exchangeable front panel

Interior Measurements

• Inner Height (mm): 181



General Measurements

• Product height (mm): 184

• Product width (mm): 900

• Product depth (mm): 280/413

• Net weight (Kg): 9.56









• Type of inner light: LED

• Inside light Consumption (W): 6

• Plug type: European plug

• Power rate (V): 220240

• Frequency (Hz): 5060

• Total hood power (W): 142

• Number of motors: 1

• Motor power (W): 130• Annual energy consumption AEC kWh/annum (kWh): 71.2

• Nominal power of the lighting system (WL) (W): 12

• Average illumination of the lighting system on the cooking surface (Emiddle) (Lux): 59

• Electric power input at best efficiency point (Wbep) (W): 107

• Ø Outlet (mm): 120

• Energy Efficiency Index (EEI): 88.1

• Energy Efficiency Class: D

• Airflow  (m³/h): Qmin 239 Qmax 339

• Sound level (dB):  Min Speed 56 Max speed 65

• Air pressure at best efficiency point(Pbep) (Pa): 187

• Fluid Dynamic Efficiency (FDEhood): 10.9

• Fluid Dynamic Efficiency Class: E

• Grease Filtering Efficiency Class: D

• Light Efficiency (Lehood) Lux/Watt: 4.6

• Lighting Efficiency Class: F

• Time increase factor: 1.6

• Anti return valve

• Outlet extension

• Charcoal Filter: C3C (Optional) Charcoal filter description: CHARCOAL FILTER C3C
